Magic Trackpad Teardown

iFixit has down a teardown of the Magic Trackpad which launched just a few days ago.

The device is a multi-touch pad designed for the Mac and allows users to use another method to interact with their Windows or Mac based computers.

iFixit point out that this is one of the few Apple [AAPL] products where users can easily get to the batteries. The screw to get to the battery compartment has a square thread which make it more mechanical efficient.

Other details noted include…

* After a good amount of quasi-non-destructive prying, the inner spacer can be removed from the trackpad. This spacer prevents the highly unlikely event of squeezing the lower panel against the logic board hard enough to damage it.

* The ribbon cables are ridiculously thin and are stuck to the underside of the touch pad. If you plan on servicing your Trackpad, proceed with caution.

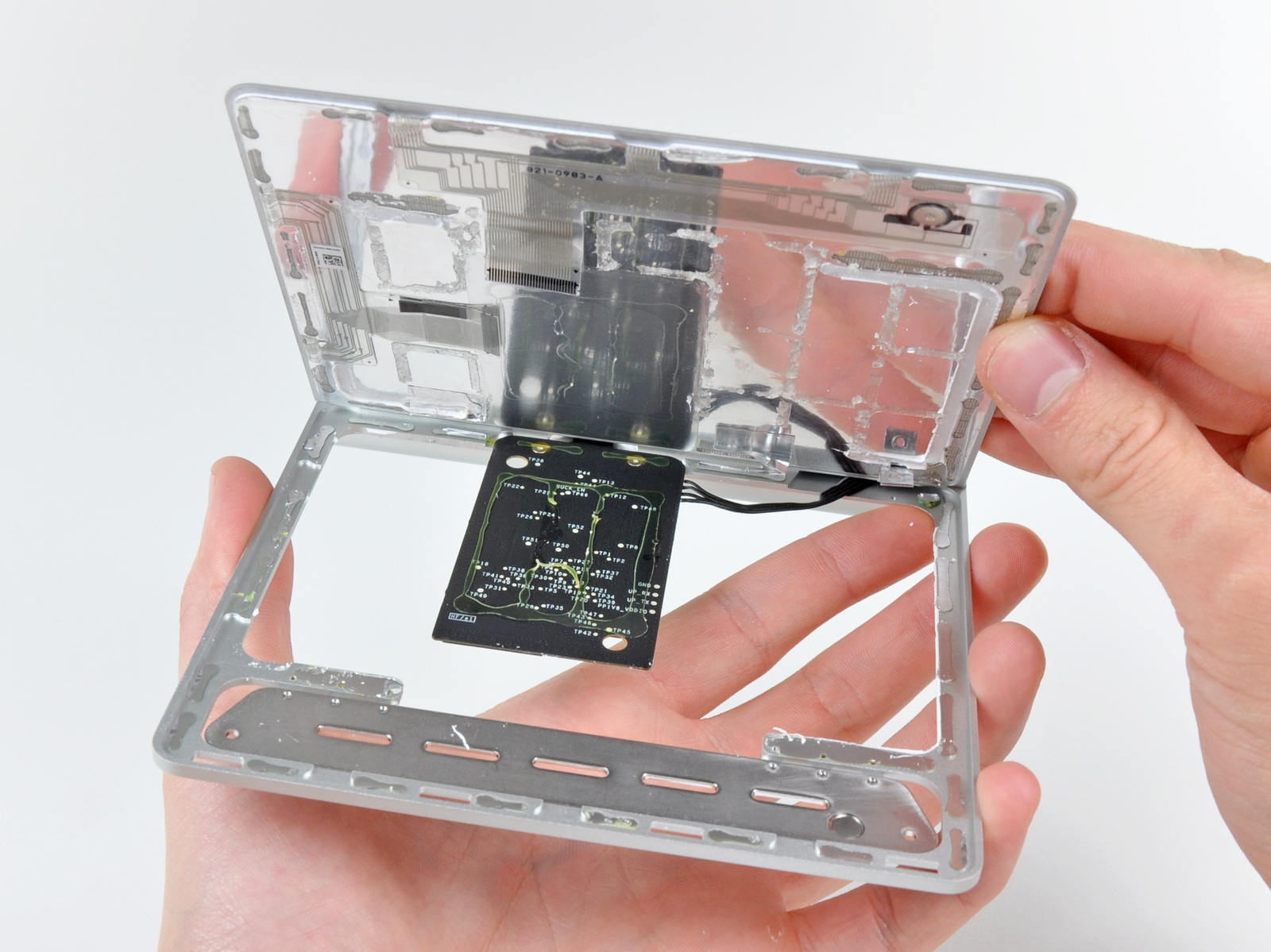

* After using a heat gun to warm up the adhesive, the touch pad can be carefully pried off the aluminum chassis. This step is not for the faint of heart. A copious amount of heat, guitar picks, and plastic opening tools were required to make the touch pad budge.

* The Magic Trackpad has a unique way of triggering the mouse button. As you press down on the top surface of the pad, the two rubber feet near its front edge push on a plate attached to the chassis. The plate squeezes the electronic mouse button switch, producing the characteristic “click.”¨

* At the heart of the Magic Trackpad’s logic board lies a Broadcom BCM2042 for Bluetooth connectivity — the same chip used by the Magic Mouse.¨

* We also found a Broadcom BCM5974 touch screen controller chip that provides multi-touch functionality. This is the same chip you’ll find in the iPhone, iPod Touch, and MacBook Air.

The full Magic Trackpad teardown can be found here.
