iPhone 4 CAD Drawings Get Spruced up

If you plan on making a case for an Apple [AAPL] product such as an iPhone 4 or iPad for example, Apple has a page on it’s site that allows you to grab all the technical details you need to create the case. The CAD style drawings are available, but to be honest look a little bland as they are just line drawings with measurements and a few hints and tips added on such as “do not block the camera”.

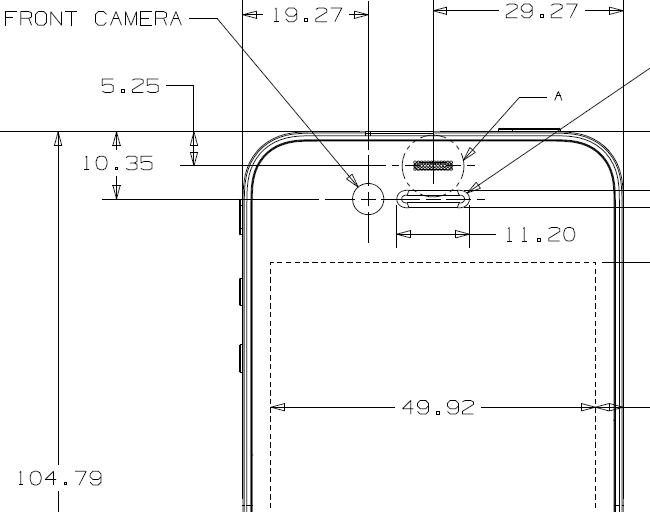

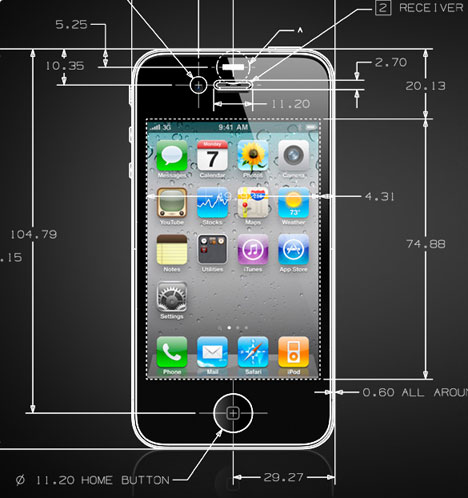

Core77 decided to spruce the images a little by merging actual pictures of the iPhone 4 with the CAD details and came up with the image just above. A section of the original drawing can be found below with all the drawings for many Apple products available over here.
