Ampro RuffSystem 840 Extreme Rugged PC

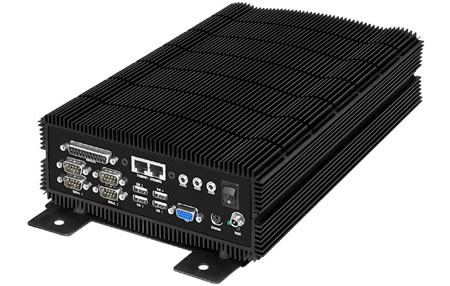

Adlink-RuffSystem-840The RuffStstem 840 is an embedded rugged PC that can function in harsh environments. Thanks to it’s strong build it can operate down to -40 degrees Celsius and up to +75 degrees C which is quite impressive alone.

The RuffSystem rugged PC has an Intel Core 2 Duo processor inside and also has two gigabit speed Ethernet ports. A VGA output is to be found on the casing along with four USB 2.0 connectors as well as 4 serial ports and 1 parallel port.

RuffSystem 840 Specs and Features

* Designed to support the extreme rugged COM 840 with rugged EBX carrier board
* Dimension (WxHxD): 8″ x 10″ x 3″
* Meets MIL-STD 810 (shock/vibration, temperature, humidity)

* Low-power, conductive cooled Intel® Core¢ 2 Duo L7500
* Intel® GME965/ICH8M chipset
* Internal PC/104 card stand support for (2) PC/104(+) expansion cards
* Gigabit Ethernet, 10/100 Ethernet, USB, Serial, Video, Audio, IDE, SATA
* Designed to meet MIL-STD 810 (shock/vibration, temp, humidity) using Ampro’s LittleBoard¢
* Voltage/Surge protected Vehicle Grade DC/DC converter
* Embedded Linux® or Windows® XP
* Optional: Windows® CE, QNX or VxWorks®

More details to be found over at Ampro. Via: TechFresh

Comments

  1. This product has been available in limited quantities for a few months, but is now in Mass Production, available, and shipping.The product is also available with D38999 MIL-STD connectors.

    Shock testing included 18-pulses, 6-axis @ 40Gs, in addition to simulated torpedo strike!

    Please note that the operating temperature range is with the processor at full speed, WITHOUT speed-step throttling!
